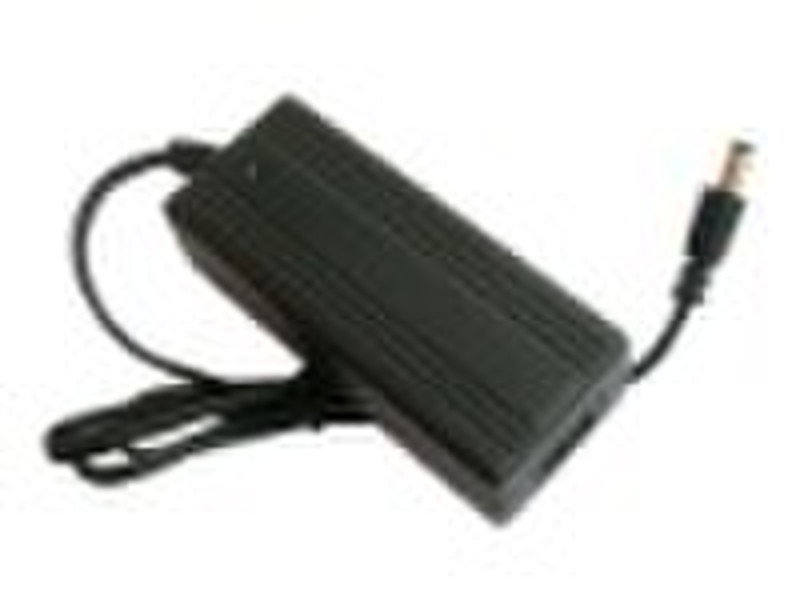

ac/dc power supply
William Huang
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | Fuyuang |
| Model Number | FY2402000 |
| Input Voltage | 100-240VAC 50/60Hz |
| Output Voltage | 24V |
| Output Current | 2A |
| Output Type | Single |
Features/ Functions Regulated output with low ripple Power-on LED indicator Comply with CEC,MEPS,ErP Certifications: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS General Specifications Input :100-240VAC, 50/60Hz Output voltage : 24VDC Output current :2000 mA Ripple : 350mVp-p Max. Inrush current : Limited 15A for a cold start No load standby power ≤0.5W Efficiency: 85% Min. Operating temperature: --29°C +45.5°CStorage temperature: -40°C +75°cOperating relative humidity: 5% 95% RH Over load protection: Auto recovery Short circuit protection: Auto recovery MTBF: 30000 hours full rated loadat 25°c2 years warrantyCase dimension: 112 x 43.7 x 30.7 mm AQL: MIL-STD-105D II CRI 0; MAJ 0.25; NIN 2.5
Delivery terms and packaging
Packaging Detail: Each piece in a white box, then 48 pieces in an export carton Delivery Detail: 20 days
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
