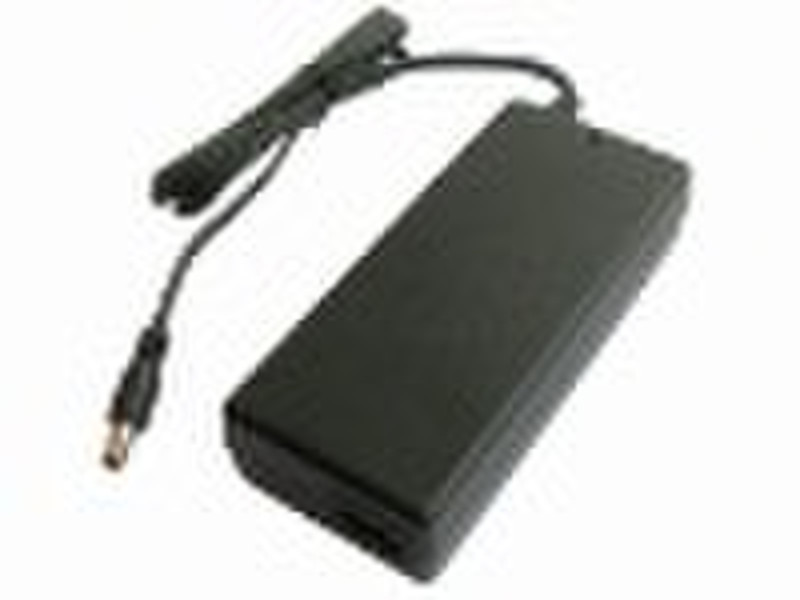

Switching power adapter
William Huang
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | Fuyuang |
| Model Number | FY0905000 |
| Input Voltage | 100-240VAC |
| Output Voltage | 9VDC |
| Output Current | 5A |
| Output Power | 1 - 50W |
| Output Type | Single |
Regulated output with low ripple Power-on LED indicator Certifications: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS Input :100-240VAC, 50/60Hz Output voltage : 9VDC Output current :5000 mA +/-5%Ripple : 120mVp-p Max. Inrush current : Limited 15A for a cold start No load standby power ≤0.5W Efficiency: 85 % Min. Operating temperature: -29°C +45.5C °c Storage temperature: -40°C +75°c Operating relative humidity: 5% 95% RH Over load protection: Auto recovery Short circuit protection: Auto recovery MTBF: 30000 hours full rated load operation at 25 °c Case dimension: 132 X 59 X 31mm AQL: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; NIN 2.5 Warranty: 2 years
Delivery terms and packaging
Packaging Detail: Each in a white box, 48 pcs in an export carton. Delivery Detail: 22 days
