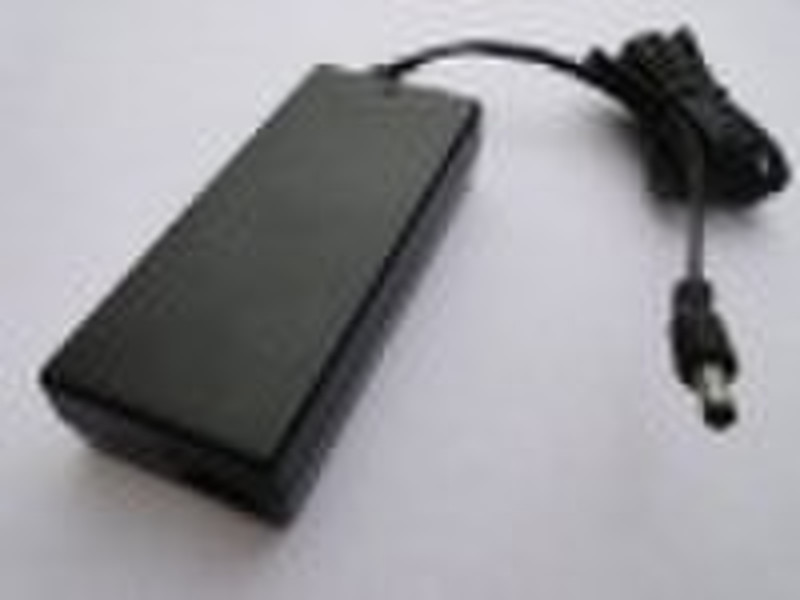

Switching power supply
William Huang
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | Fuyuang |
| Model Number | FY4801500 |
| Input Voltage | 100-240VAC |
| Output Voltage | 48V |
| Output Current | 1.5A |
| Output Type | Single |
Regulated output with low ripple With a power-on LED indicator CEC, ErP, MEPSapprovedCertifications: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS Input :100-240VAC, 50/60Hz Output voltage : 48VDCOutput current :1500 mA Ripple : 500 mVp-p Max. Inrush current : Limited 15A for a cold start No load standby power ≤0.5W Efficiency: 88% Min. Temperature: Case 65°C Max. Operating temperature: -29°C +45.5°CStorage temperature: -40°C +75°COperating relative humidity: 5%-95% RH Over load protection: Auto recovery Short circuit protection: Auto recovery MTBF: 30000 hours full rated load at 25 °CAQL: MIL-STD-105D II CRI 0; MAJ 0.25; NIN 2.5
Delivery terms and packaging
Packaging Detail: Each piece in a white box, then 48 pieces in an export carton Delivery Detail: 20 days
